Chapter 2: Architecture

Logback's architecture

Logback's basic architecture is sufficiently generic so as to apply under different circumstances. At the present time, logback is divided into three modules, logback-core, logback-classic and logback-access.

The core module lays the groundwork for the other two modules. The classic module extends core. The classic module corresponds to a significantly improved version of log4j. Logback-classic natively implements the SLF4J API so that you can readily switch back and forth between logback and other logging systems such as log4j or java.util.logging (JUL) introduced in JDK 1.4. The third module called access integrates with Servlet containers to provide HTTP-access log functionality. A separate document covers access module documentation.

In the remainder of this document, we will write "logback" to refer to the logback-classic module.

Logger, Appenders and Layouts

Logback is built upon three main classes: Logger, Appender and Layout. These three types of components work together to enable developers to log messages according to message type and level, and to control at runtime how these messages are formatted and where they are reported.

The Logger class is part of the logback-classic module. On the other hand, the Appender and Layout interfaces are part of logback-core. As a general-purpose module, logback-core has no notion of loggers.

Logger context

The first and foremost advantage of any logging API over plain System.out.println resides in its ability to disable certain log statements while allowing others to print unhindered. This capability assumes that the logging space, that is, the space of all possible logging statements, is categorized according to some developer-chosen criteria. In logback-classic, this categorization is an inherent part of loggers. Every single logger is attached to a LoggerContext which is responsible for manufacturing loggers as well as arranging them in a tree like hierarchy.

Loggers are named entities. Their names are case-sensitive and they follow the hierarchical naming rule:

Named Hierarchy

A logger is said to be an ancestor of another logger if its name followed by a dot is a prefix of the descendant logger name. A logger is said to be a parent of a child logger if there are no ancestors between itself and the descendant logger.

For example, the logger named "com.foo" is a parent of the logger named "com.foo.Bar". Similarly, "java" is a parent of "java.util" and an ancestor of "java.util.Vector". This naming scheme should be familiar to most developers.

The root logger resides at the top of the logger hierarchy. It is exceptional in that it is part of every hierarchy at its inception. Like every logger, it can be retrieved by its name, as follows:

Logger rootLogger = LoggerFactory.​getLogger(org.slf4j.Logger.​ROOT_LOGGER_NAME);

All other loggers are also retrieved with the class static getLogger method found in the org.slf4j.LoggerFactory class. This method takes the name of the desired logger as a parameter. Some of the basic methods in the Logger interface are listed below.

package org.slf4j;
public interface Logger {

  // Printing methods:
  public void trace(String message);
  public void debug(String message);
  public void info(String message);
  public void warn(String message);
  public void error(String message);
}

Effective Level aka Level Inheritance

Loggers may be assigned levels. The set of possible levels (TRACE, DEBUG, INFO, WARN and ERROR) are defined in the ch.qos.logback.classic.Level class. Note that in logback, the Level class is final and cannot be subclassed, as a much more flexible approach exists in the form of Marker objects.

If a given logger is not assigned a level, then it inherits one from its closest ancestor with an assigned level. More formally:

The effective level for a given logger L, is equal to the first non-null level in its hierarchy, starting at L itself and proceeding upwards in the hierarchy towards the root logger.

To ensure that all loggers can eventually inherit a level, the root logger always has an assigned level. By default, this level is DEBUG.

Below are four examples with various assigned level values and the resulting effective (inherited) levels according to the level inheritance rule.

Example 1
Logger name Assigned level Effective level
root DEBUG DEBUG
X none DEBUG
X.Y none DEBUG
X.Y.Z none DEBUG

In example 1 above, only the root logger is assigned a level. This level value, DEBUG, is inherited by the other loggers X, X.Y and X.Y.Z

Example 2
Logger name Assigned level Effective level
root ERROR ERROR
X INFO INFO
X.Y DEBUG DEBUG
X.Y.Z WARN WARN

In example 2 above, all loggers have an assigned level value. Level inheritance does not come into play.

Example 3
Logger name Assigned level Effective level
root DEBUG DEBUG
X INFO INFO
X.Y none INFO
X.Y.Z ERROR ERROR

In example 3 above, the loggers root, X and X.Y.Z are assigned the levels DEBUG, INFO and ERROR respectively. Logger X.Y inherits its level value from its parent X.

Example 4
Logger name Assigned level Effective level
root DEBUG DEBUG
X INFO INFO
X.Y none INFO
X.Y.Z none INFO

In example 4 above, the loggers root and X and are assigned the levels DEBUG and INFO respectively. The loggers X.Y and X.Y.Z inherit their level value from their nearest parent X, which has an assigned level.

Printing methods and the basic selection rule

By definition, the printing method determines the level of a logging request. For example, if L is a logger instance, then the statement L.info("..") is a logging statement of level INFO.

A logging request is said to be enabled if its level is higher than or equal to the effective level of its logger. Otherwise, the request is said to be disabled. As described previously, a logger without an assigned level will inherit one from its nearest ancestor. This rule is summarized below.

Basic Selection Rule

A log request of level p issued to a logger having an effective level q, is enabled if p >= q.

This rule is at the heart of logback. It assumes that levels are ordered as follows: TRACE < DEBUG < INFO <  WARN < ERROR.

In a more graphic way, here is how the selection rule works. In the following table, the vertical header shows the level of the logging request, designated by p, while the horizontal header shows effective level of the logger, designated by q. The intersection of the rows (level request) and columns (effective level) is the boolean resulting from the basic selection rule.

level of
request p
effective level q
TRACE DEBUG INFO WARN ERROR OFF
TRACE YES NO NO NO NO NO
DEBUG YES YES NO NO NO NO
INFO YES YES YES NO NO NO
WARN YES YES YES YES NO NO
ERROR YES YES YES YES YES NO

Here is an example of the basic selection rule.

import ch.qos.logback.classic.Level;
import org.slf4j.Logger;
import org.slf4j.LoggerFactory;
....

// get a logger instance named "com.foo". Let us further assume that the
// logger is of type  ch.qos.logback.classic.Logger so that we can
// set its level
ch.qos.logback.​classic.Logger logger =
        (ch.qos.logback.​classic.Logger) LoggerFactory.​getLogger("com.foo");
//set its Level to INFO. The setLevel() method requires a logback logger
logger.setLevel(Level. INFO);

Logger barlogger = LoggerFactory.​getLogger(​"com.foo.Bar");

// This request is enabled, because WARN >= INFO
logger.warn("Low fuel level.");

// This request is disabled, because DEBUG < INFO.
logger.debug("Starting search for nearest gas station.");

// The logger instance barlogger, named "com.foo.Bar",
// will inherit its level from the logger named
// "com.foo" Thus, the following request is enabled
// because INFO >= INFO.
barlogger.info("Located nearest gas station.");

// This request is disabled, because DEBUG < INFO.
barlogger.debug("Exiting gas station search");

Retrieving Loggers

Calling the LoggerFactory.getLogger method with the same name will always return a reference to the exact same logger object.

For example, in

Logger x = LoggerFactory.getLogger("wombat");
Logger y = LoggerFactory.getLogger("wombat");

x and y refer to exactly the same logger object.

Thus, it is possible to configure a logger and then to retrieve the same instance somewhere else in the code without passing around references. In fundamental contradiction to biological parenthood, where parents always precede their children, logback loggers can be created and configured in any order. In particular, a "parent" logger will find and link to its descendants even if it is instantiated after them.

Configuration of the logback environment is typically done at application initialization. The preferred way is by reading a configuration file. This approach will be discussed shortly.

Logback makes it easy to name loggers by software component. This can be accomplished by instantiating a logger in each class, with the logger name equal to the fully qualified name of the class. This is a useful and straightforward method of defining loggers. As the log output bears the name of the generating logger, this naming strategy makes it easy to identify the origin of a log message. However, this is only one possible, albeit common, strategy for naming loggers. Logback does not restrict the possible set of loggers. As a developer, you are free to name loggers as you wish.

Nevertheless, naming loggers after the class where they are located seems to be the best general strategy known so far.

Appenders and Layouts

The ability to selectively enable or disable logging requests based on their logger is only part of the picture. Logback allows logging requests to print to multiple destinations. In logback speak, an output destination is called an appender. Currently, appenders exist for the console, files, remote socket servers, to MySQL, PostgreSQL, Oracle and other databases, JMS, and remote UNIX Syslog daemons.

More than one appender can be attached to a logger.

The addAppender method adds an appender to a given logger. Each enabled logging request for a given logger will be forwarded to all the appenders in that logger as well as the appenders higher in the hierarchy. In other words, appenders are inherited additively from the logger hierarchy. For example, if a console appender is added to the root logger, then all enabled logging requests will at least print on the console. If in addition a file appender is added to a logger, say L, then enabled logging requests for L and L's children will print on a file and on the console. It is possible to override this default behavior so that appender accumulation is no longer additive by setting the additivity flag of a logger to false.

The rules governing appender additivity are summarized below.

Appender Additivity

The output of a log statement of logger L will go to all the appenders in L and its ancestors. This is the meaning of the term "appender additivity".

However, if an ancestor of logger L, say P, has the additivity flag set to false, then L's output will be directed to all the appenders in L and its ancestors up to and including P but not the appenders in any of the ancestors of P.

Loggers have their additivity flag set to true by default.

The table below shows an example:
Logger Name Attached Appenders Additivity Flag Output Targets Comment
root A1 not applicable A1 Since the root logger stands at the top of the logger hierarchy, the additivity flag does not apply to it.
x A-x1, A-x2 true A1, A-x1, A-x2 Appenders of "x" and of root.
x.y none true A1, A-x1, A-x2 Appenders of "x" and of root.
x.y.z A-xyz1 true A1, A-x1, A-x2, A-xyz1 Appenders of "x.y.z", "x" and of root.
security A-sec false A-sec No appender accumulation since the additivity flag is set to false. Only appender A-sec will be used.
security.access none true A-sec Only appenders of "security" because the additivity flag in "security" is set to false.

More often than not, users wish to customize not only the output destination but also the output format. This is accomplished by associating a layout with an appender. The layout is responsible for formatting the logging request according to the user's wishes, whereas an appender takes care of sending the formatted output to its destination. The PatternLayout, part of the standard logback distribution, lets the user specify the output format according to conversion patterns similar to the C language printf function.

For example, the PatternLayout with the conversion pattern "%-4relative [%thread] %-5level %logger{32} - %msg%n" will output something akin to:

176  [main] DEBUG manual.architecture.HelloWorld2 - Hello world.

The first field is the number of milliseconds elapsed since the start of the program. The second field is the thread making the log request. The third field is the level of the log request. The fourth field is the name of the logger associated with the log request. The text after the '-' is the message of the request.

Parameterized logging

Given that loggers in logback-classic implement the SLF4J's Logger interface, certain printing methods admit more than one parameter. These printing method variants are mainly intended to improve performance while minimizing the impact on the readability of the code.

For some Logger logger, writing,

logger.debug("Entry number: " + i + " is " + String.valueOf(entry[i]));

incurs the cost of constructing the message parameter, that is converting both integer i and entry[i] to a String, and concatenating intermediate strings. This is regardless of whether the message will be logged or not.

One possible way to avoid the cost of parameter construction is by surrounding the log statement with a test. Here is an example.

if(logger.isDebugEnabled()) {
  logger.debug("Entry number: " + i + " is " + String.valueOf(entry[i]));
}

This way you will not incur the cost of parameter construction if debugging is disabled for logger. On the other hand, if the logger is enabled for the DEBUG level, you will incur the cost of evaluating whether the logger is enabled or not, twice: once in debugEnabled and once in debug. In practice, this overhead is insignificant because evaluating a logger takes less than 1% of the time it takes to actually log a request.

Better alternative

There exists a convenient alternative based on message formats. Assuming entry is an object, you can write:

Object entry = new SomeObject();
logger.debug("The entry is {}.", entry);

Only after evaluating whether to log or not, and only if the decision is positive, will the logger implementation format the message and replace the '{}' pair with the string value of entry. In other words, this form does not incur the cost of parameter construction when the log statement is disabled.

The following two lines will yield the exact same output. However, in case of a disabled logging statement, the second variant will outperform the first variant by a factor of at least 30.

logger.debug("The new entry is "+entry+".");
logger.debug("The new entry is {}.", entry);

A two argument variant is also available. For example, you can write:

logger.debug("The new entry is {}. It replaces {}.", entry, oldEntry);

If three or more arguments need to be passed, a varargs (Object...) variant is also available. For example, you can write:

logger.debug("Value {} was inserted between {} and {}.", newVal, below, above);

Note that the varags variant incurs the cost of the creation of an Object[] instance.

A peek under the hood

After we have introduced the essential logback components, we are now ready to describe the steps that the logback framework takes when the user invokes a logger’s printing method. Let us now analyze the steps logback takes when the user invokes the info() method of a logger named com.wombat.

1. Get the filter chain decision

If it exists, the TurboFilter chain is invoked. Turbo filters can set a context-wide threshold, or filter out certain events based on information such as Marker, Level, Logger, message, or the Throwable that are associated with each logging request. If the reply of the filter chain is FilterReply.DENY, then the logging request is dropped. If it is FilterReply.NEUTRAL, then we continue with the next step, i.e. step 2. In case the reply is FilterReply.ACCEPT, we skip the next and directly jump to step 3.

2. Apply the basic selection rule

At this step, logback compares the effective level of the logger with the level of the request. If the logging request is disabled according to this test, then logback will drop the request without further processing. Otherwise, it proceeds to the next step.

3. Create a LoggingEvent object

If the request survived the previous filters, logback will create a ch.qos.logback.​classic.​LoggingEvent object containing all the relevant parameters of the request, such as the logger of the request, the request level, the message itself, the exception that might have been passed along with the request, the current time, the current thread, various data about the class that issued the logging request and the MDC. Note that some of these fields are initialized lazily, that is only when they are actually needed. The MDC is used to decorate the logging request with additional contextual information. MDC is discussed in a subsequent chapter.

4. Invoking appenders

After the creation of a LoggingEvent object, logback will invoke the doAppend() methods of all the applicable appenders, that is, the appenders inherited from the logger context.

All appenders shipped with the logback distribution extend the AppenderBase abstract class that implements the doAppend method in a synchronized block ensuring thread-safety. The doAppend() method of AppenderBase also invokes custom filters attached to the appender, if any such filters exist. Custom filters, which can be dynamically attached to any appender, are presented in a separate chapter.

5. Formatting the output

It is responsibility of the invoked appender to format the logging event. However, some (but not all) appenders delegate the task of formatting the logging event to a layout. A layout formats the LoggingEvent instance and returns the result as a String. Note that some appenders, such as the SocketAppender, do not transform the logging event into a string but serialize it instead. Consequently, they do not have nor require a layout.

6. Sending out the LoggingEvent

After the logging event is fully formatted it is sent to its destination by each appender.

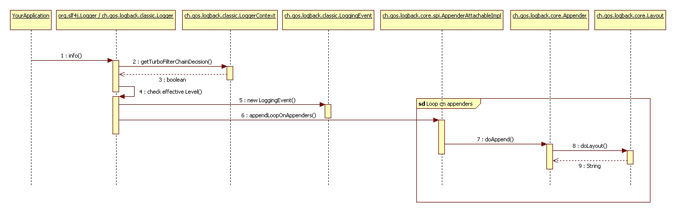

Here is a sequence UML diagram to show how everything works. You might want to click on the image to display its bigger version.


Performance

One of the often-cited arguments against logging is its computational cost. This is a legitimate concern as even moderately-sized applications can generate thousands of log requests. Much of our development effort is spent measuring and tweaking logback’s performance. Independently of these efforts, the user should still be aware of the following performance issues.

1. Logging performance when logging is turned off entirely

You can turn off logging entirely by setting the level of the root logger to Level.OFF, the highest possible level. When logging is turned off entirely, the cost of a log request consists of a method invocation plus an integer comparison. On a 3.2Ghz Pentium D machine this cost is typically around 20 nanoseconds.

However, any method invocation involves the "hidden" cost of parameter construction. For example, for some logger x writing,

x.debug("Entry number: " + i + "is " + entry[i]);

incurs the cost of constructing the message parameter, i.e. converting both integer i and entry[i] to a string, and concatenating intermediate strings, regardless of whether the message will be logged or not.

The cost of parameter construction can be quite high and depends on the size of the parameters involved. To avoid the cost of parameter construction you can take advantage of SLF4J’s parameterized logging:

x.debug("Entry number: {} is {}", i, entry[i]);

This variant will not incur the cost of parameter construction. Compared to the previous call to the debug() method, it will be faster by a wide margin. The message will be formatted only if the logging request is to be sent to attached appenders. Moreover, the component that formats messages is highly optimized.

Notwithstanding the above placing log statements in tight loops, i.e. very frequently invoked code, is a lose-lose proposal, likely to result in degraded performance. Logging in tight loops will slow down your application even if logging is turned off, and if logging is turned on, will generate massive (and hence useless) output.

2. The performance of deciding whether to log or not to log when logging is turned on.

In logback, there is no need to walk the logger hierarchy. A logger knows its effective level (that is, its level, once level inheritance has been taken into consideration) when it is created. Should the level of a parent logger be changed, then all child loggers are contacted to take notice of the change. Thus, before accepting or denying a request based on the effective level, the logger can make a quasi-instantaneous decision, without needing to consult its ancestors.

3. Actual logging (formatting and writing to the output device)

This is the cost of formatting the log output and sending it to its target destination. Here again, a serious effort was made to make layouts (formatters) perform as quickly as possible. The same is true for appenders. The typical cost of actually logging is about 9 to 12 microseconds when logging to a file on the local machine. It goes up to several milliseconds when logging to a database on a remote server.

Although feature-rich, one of the foremost design goals of logback was speed of execution, a requirement which is second only to reliability. Some logback components have been rewritten several times to improve performance.
